| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | BB11036001 |
| Minimum Order Quantity: | 200 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | inner boxes,cartons,pallets |
| Delivery Time: | Negotiation |
| Payment Terms: | T/T, PayPal, Western Union |
| Supply Ability: | 100000pcs per month |
| Hole Size: | 11mm | Height: | 36mm |
|---|---|---|---|
| Width: | 38.5mm | Voltage: | 24V DC |
| Power: | 24VA, 21W | Connection: | DIN43650A |
| Insulation Class: | H | Enameled Wire Material: | Copper |
| Suitable Valve Number: | SCG353A043, SCG353A044, SCG353A052, SCG353A053 | ||
| Highlight: | SCG353A043 Magnetic Coil,400325 Magnetic Coil,ASCO Type 400325 |
||

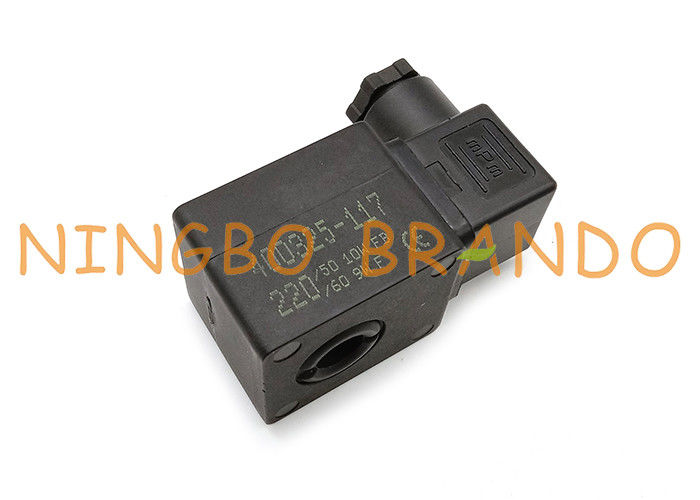

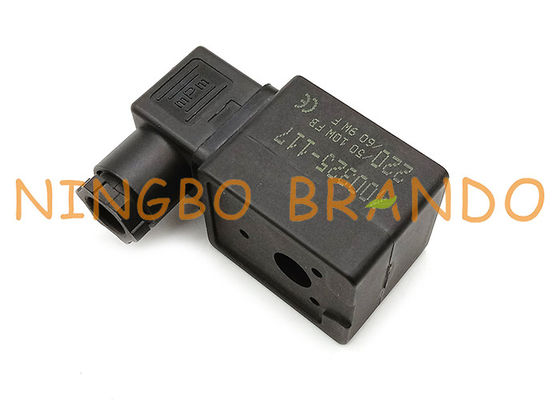

SCG353A043 SCG353A044 Pulse Jet Valve 400325 Magnetic Coil
ASCO Type solenoid pulse valve replacement coil, can be used in SCG353A043, SCG353A044, SCG353A052, SCG353A053 electromagnetic impulse valve. 353 series pulse valves are Widely used in bag house dust collector system.
The pulse valve is the compressed air switch of the pulse bag type dust collector cleaning system is controlled by the pulse blowing controller, and the filter bag is sprayed and cleaned step by row, so that the resistance of the dust collector is kept within the set range.
| Model number | BB11036001 |
| Ref number | 400325642, 400325101, 400325118 |
| Normal voltage | AC110V, AC220V, DC12V, DC24V (Other can be customized) |
| Normal power | AC:20VA, DC: 21Watt |
| Material | BMC, Brass |
| Wire class | H |
| Connection | DIN43650A |
| Application | ASCO SCG353A043, SCG353053 Pulse Valve |
| Hole diameter | 11 mm |
| Height | 36 mm |
| Width | 38.5 mm |
| Valve Model | Repair Kits | Solenoid Coils | ||||
| AC | DC | 24VDC | 24 VAC | 110VAC | 220VAC | |
| SCG353A043 | C113444 | C113444 | 400325642 | 400325101 | 400325118 | 400325118 |
| ACG353AD44 | C113444 | C113444 | 400325642 | 400325101 | 400325118 | 400325118 |
| ACG353052 | C113444 | C113444 | 400325642 | 400325101 | 400325118 | 400325118 |
| SCG353053 | C113444 | C113444 | 400325642 | 400325101 | 400325118 | 400325118 |
| SCG353AD47 | C113827 | C113827 | 400425342 | 400425101 | 400425118 | 400425117 |
| SCG353050 | C113685 | C113686 | 400425342 | 400425101 | 400425118 | 400425117 |
| SCG353051 | C113685 | C113686 | 400425342 | 400425101 | 400425118 | 400425117 |
| SCG353060 | C123432 | C123433 | 400425342 | 400425101 | 400425118 | 400425117 |
| SCG353AD65 | C113827 | C113827 | 400425342 | 400425101 | 400425118 | 400425117 |
Main Dimension of 400325-142 ASCO Type Pulse Valve Coil:
Product Characteristic:
1. Using high quality wire which has UL approved;
2. Using high quality permeablity magnetic material which contain low carbon;
3. Using high quality housing material like PA66, PBT, PPS, BMC and so on.
4. Insulation class can be B, F, H, N, C;
5. Protection class can be IP65, IP67 & IP69K;
6. We also offer special coils like ex-proof coils, water proof coils and so on.
7. If you have special requirement, pls feel free to contact us.
