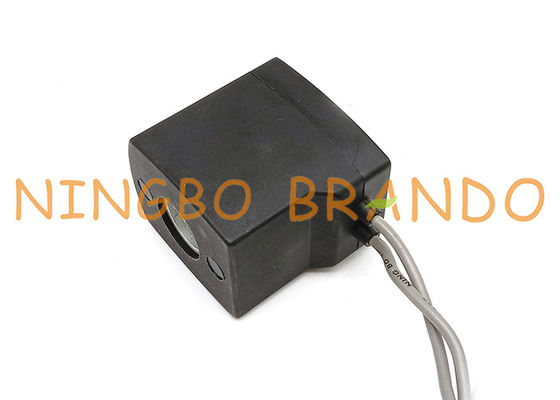

Dust Collector Pulse Jet Valve Parts Flying Leads Solenoid Coil

Dust Collector Pulse Jet Valve Parts Flying Leads Solenoid Coil

The pulse valve includes a solenoid coil that occupies this important position throughout the device, leaving the coil device as a whole inoperable. The development of pulse valves is relatively late, the main reason is the problem of coils. People have applied electromagnetic properties earlier, but when they started to study the coils suitable for pulse valves, they could not find a suitable coil to carry out the work of energization.

Now with the continuous development of technology, pulse valves are constantly developing. In order to make the development of pulse valves faster, the first is the development of solenoid coils. Only the technical development of this coil can better promote the development of the pulse valve. The operation of this device is relatively simple, and it can work directly by directly energizing the side. The solenoid coil is mounted inside the pulse valve, which also avoids interference and damage to the coil by other things.

The operation of the pulse valve includes switching and adjusting the valve. At this time, the operator only needs to adjust the operating valve according to his own needs. The solenoid coil guarantees better operation of this equipment and is also a condition for equipment development.

In most flow control applications, it is necessary to start or stop the flow in the circuit to control the fluids in the system. An electronically operated solenoid valve is usually used for this purpose. By being solenoid actuated, solenoid valves can be positioned in remote locations and may be conveniently controlled by simple electrical switches.

Solenoid valves are the most frequently used control elements in fluidics. They are commonly used to shut off, release, dose, distribute or mix fluids. For that reason, they are found in many application areas. Solenoids generally offer fast and safe switching, long service life, high reliability, low control power and compact design.

Dimension of BB13241001 Solenoid Valve Coil :

Technical Data:

Solenoid Coil Production Line:

Attention:​
1. This air suspension compressor pump solenoid coil is made of high quality components.

2. Replaces the original air compressor solenoid coil of your car and equal the original quality.
3. Please double confirm the compatibility as well as the OEM number before purchasing.
4. Instruction is not included. Professional installation is recommended.

Steps and methods for properly installing a solenoid valve coil:

1. Check if the solenoid valve and the selected parameters are the same, such as differential pressure, etc. If the error occurs, the solenoid valve coil will be burned out. Voltage fluctuations should be within the normal range and meet the rated voltage.

2. Before connecting the pipeline, flush the pipeline and remove the residual dirt in the pipeline. If there are residual stains, it will affect the normal use of the solenoid valve. To prevent this, a filter should be installed in the pipeline.

3. Install the solenoid valve coil of the solenoid valve vertically on the horizontal and ground pipes. If there is a special situation, it cannot be installed vertically. The appropriate solenoid valve should be ordered in advance, otherwise the solenoid valve will not work properly.

4. When installing, add a safety process and install a manual cutting valve to facilitate maintenance in case of failure.

5. Pay attention to the direction when installing, can not be reversed, installed in the direction indicated on the package, and can be reversed in some special cases such as vacuum.

6. If the water may be damaged by the medium, you must take appropriate protective measures or choose a solenoid valve with a waterproof hammer function.

7. The solenoid valve cannot be energized all the time, otherwise it will reduce its life. Note that normally open, normally closed solenoid valves cannot be used with care.

Product Features:
1. Using high quality wire which has UL approved; 2. Using high quality permeablity magnetic material which contain low carbon;
3. Using high quality housing material like PA66, PBT, PPS, BMC and so on.
4. Insulation class can be B, F, H, N, C;
5. Protection class can be IP65, IP67 & IP69K;
6. We also offer special coils like ex-proof coils, water proof coils and so on.
7. If you have special requirement, pls feel free to contact us.

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing

Welcome to your any question and inquiry!
