BH 10 Pulse Jet Solenoid Valve Coil Turbo Type 24VDC 220VAC

BH 10 Pulse Jet Solenoid Valve Coil Turbo Type 24VDC 220VAC

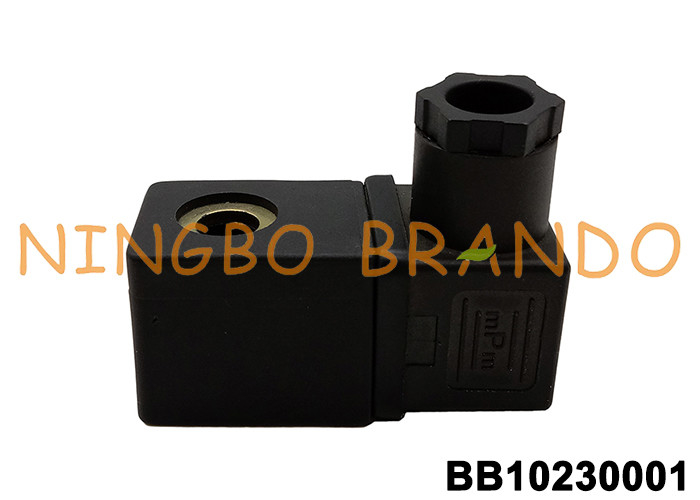

This is BH10 solenoid coil for Turbo pulse jet valve. Voltage: 24VDC, 110VAC, 220VAC; Power: 19VA,15W; Connector: DIN 43650 Form A. Fitted Pulse Valve Model: FP20, FM20, FP25, FM25, DP20, DM20, DP25, DM25, EP25, EM25, SQP20, SQM20, SQP25, SQM25, FDP20, FDM20, FDP25, FDM25, FP40, FM40, DP40, DM40, EP40, EM40, FP50, FM50, FP55, FM55, SQP50, SQM50, SQP55, SQM55, SQP60, SQM60, SQP65, SQM65, FP65, FM65, SQP75, SQM75.

This BH10 pulse valve coil is an important accessory product of TURBO type pulse valve. Its voltage is DC24V, AC24V, AC220V, AC110. It is made of enameled wire, paint film, skeleton and plastic coated with sufficient number of turns. The material determines the performance of the product. The price is also high and low depending on the quality of the material. The coils produced by our company are made of thermosetting plastic, excellent temperature resistance, convenient connection and strong versatility. Although the coil is small, it has an irreplaceable role. If the coil is hot during use, it should be replaced in time. We also produce armature assembly and diaphragms that are used together.

Dimension & Data of BH10 Coil & GPC10 Armature:

Video of BH10 Solenoid Coil:

BRANDO Solenoid Valve Coils Production Video:

More Turbo Type Pulse Valves for you to choose:

Threaded Type	Submerged Type	Valve Diaphragm
Solenoid Coil	Solenoid Armature	Pulse Controller
