| Place of Origin: | Ningbo, China |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | BCKH-Z |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plastic bag, Box, Carton, Pallet |
| Delivery Time: | 4 to 7 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 10000000pcs per month |
| Product Name: | Pneumatic Hose Fittings | Type: | Male Straight |
|---|---|---|---|
| Tube OD (Inch): | 1/8", 1/4", 3/8", 1/2" | Tube OD (Mertric): | 4mm, 6mm, 8mm, 10mm, 12mm |
| Material: | Brass | Working Pressure Range: | 0 To 0.8 MPa |
| Working Temperature: | 0 To +60 ℃ | Connection: | Push On |
| Highlight: | Brass Metal Air Connector,Push In Pneumatic Hose Fitting,Male Straight Pneumatic Hose Fitting |
||

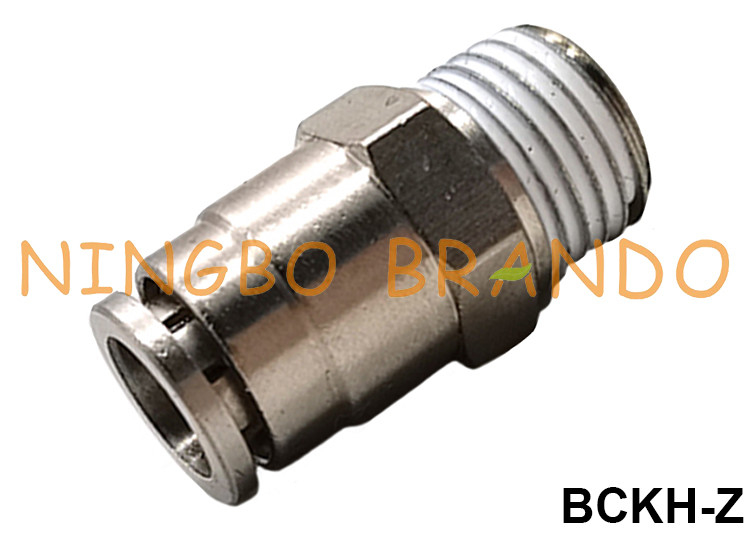

Brass Pneumatic Air Connector Male Straight 1/8'' 1/4'' 3/8'' 1/2''
Push to connect fittings are designed for connection of pneumatic hose (with calibrated external diameter). The connection in achieved by pushing the hose into the fitting. To disconnect, the releasing collet must be pressed down. The most suitable hose material for push-in fittings is polyamide. Quick and easy to use, the push-in fittings can be re-used thousands of times without affecting the pneumatic and mechanical seal in any way. Coming in various configurations and guaranteeing a virtually unlimited, highly flexible use. The clamping spring of special shape grips the pipe without scratching or deforming it, which facilitates release.
Technical data of Pneumatic Hose Fittings:
Specifications of Male Straight Brass Pneumatic Hose Fittings:
|
Model No
|
D
|
M
|
L1
|
L
|
S
|
|
BCKH-Z2.5
|
4
|
M5X0.8
|
6
|
25
|
12
|
|
M6X1
|
6
|
25
|
12
|
||
|
M8X1
|
7
|
23
|
12
|
||
|
G1/8''
|
6
|
22
|
12
|
||
|
BCKH-Z4
|
6
|
M8X1
|
7
|
28
|
13
|
|
M10X1
|
7
|
25
|
13
|
||
|
G1/8''
|
6
|
27
|
12
|
||
|
G1/4''
|
8
|
26
|
14
|
||
|
BCKH-Z6
|
8
|
M10X1
|
7
|
28
|
14
|
|
G1/8''
|
6
|
27
|
14
|
||
|
G1/4''
|
8
|
27
|
14
|
||
|
G3/8''
|
9
|
26
|
17
|
||
|
BCKH-Z8
|
10
|
M12X1.25
|
9
|
32
|
16
|
|
G1/8''
|
6
|
29
|
16
|
||
|
G1/4''
|
8
|
31
|
16
|
||
|
G3/8''
|
9
|
29
|
17
|
||
|
G1/2''
|
10
|
26
|
22
|
||
|
BCKH-Z10
|
12
|
M16X1.5
|
10
|
31
|
19
|
|
G1/4''
|
8
|
32
|
19
|
||
|
G3/8''
|
9
|
31
|
19
|
||
|
G1/2''
|
10
|
31
|
22
|
Product Video of BRANDO Brass Pneumatic Hose Fittings:
List of All Push To Connect Brass Pneumatic Hose Fittings:
Choosing the Right Fittings for Your Pneumatic System:
Fittings help control the force and directional flow of compressed gas or air used in pneumatic systems. One of the first considerations in choosing a connector is the type of vessel that you will be connecting to such as the flexibility of the hose or tube, as well as the inner diameter (ID) and outer diameter (OD) of the vessel to ensure an adequate seal and secure connection. Fitting material choice for your pneumatic connector is also important, including gas compatibility or resistance to heat or corrosion.
Other considerations in choosing the right pneumatic system connector include:
1. Type of connection and the function it performs
2. Operational pressure of the pneumatic system
3. Operating temperature range
4. P.S.I. requirements for your application
5. Amount of vibration produced by the pneumatic system
6. Thread type of the receiving fitting
