WXYD TDF Solenoid Valve Coil For TDF-K20 TDF-K25 Pulse Valve DC24V AC220V

WXYD TDF Solenoid Valve Coil For TDF-K20 TDF-K25 Pulse Valve DC24V AC220V

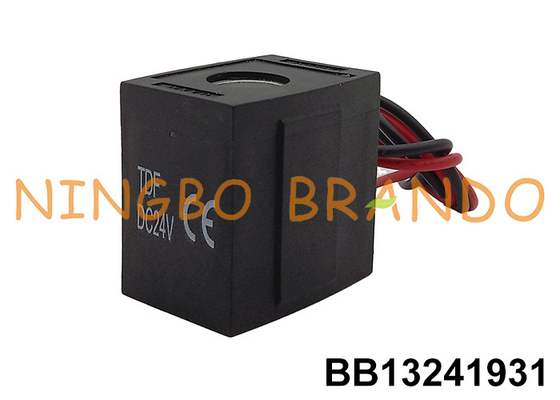

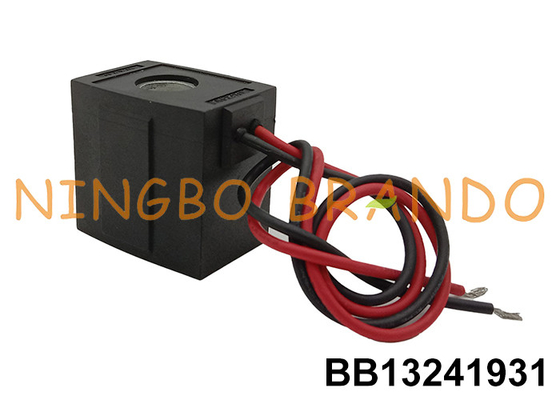

This solenoid coil is popularly used in dust collector pulse valves. The reference number is TDF. The standard voltage is 24VDC or 220VAC, the standard power is 21W, other voltages and powers can be customized as your request. If you have any demands or questions, pls contact us!

Technical Data:

Main Dimension:

Our Production:

FAQ: How to choose a matching solenoid coil?

1. Voltage: The first thing to consider is the supply voltage of the solenoid valve, which is DC or AC.
2. Power or Resistance:
3. Dimension: Inner hole diameter, height and width.
4. Working Environment: temperature, humidity, indoor or outdoor, protection grade.
5. Connector Type: pin type, flying leads type, standard interface, etc.
6. Application: some special application areas require the use of specially designed solenoid coils, such as industries that require waterproof, must use IP67 or higher grade solenoid valve coils.
7. Other Requirements: such as environmental protection material requirements or certification.
