| Place of Origin: | Ningbo, China |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | K8, K10, K13, K16, K20, K25, K30, K36 |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Box, Carton, Pallet |
| Delivery Time: | 7 to 14 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 200000 pcs per month |
| Product Name: | Pneumatic Ball Vibrator | Rated Frequency: | 7300 To 35000 RPM |
|---|---|---|---|
| Centrifugal Force: | 130 To 4050 N | Working Temperature: | Up To 100°C, Up To 150°C (on Request) |
| Highlight: | K Series Pneumatic Vibrator,Pneumatic Ball Vibrator,Pneumatic Vibrator For Hopper |
||

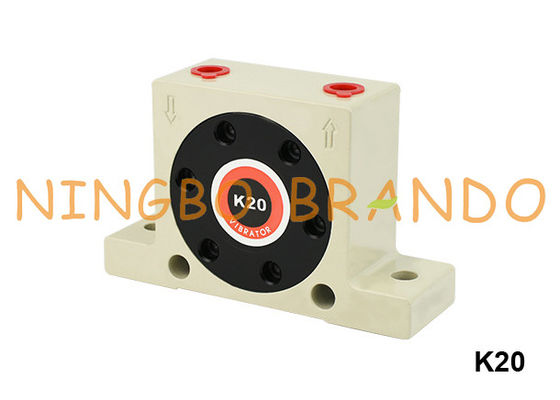

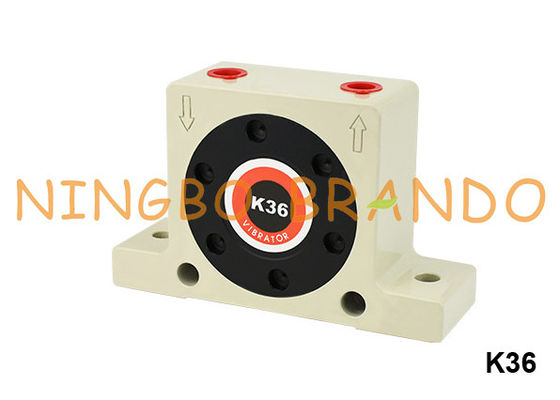

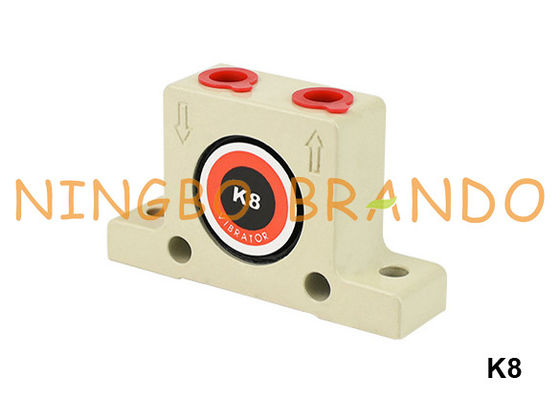

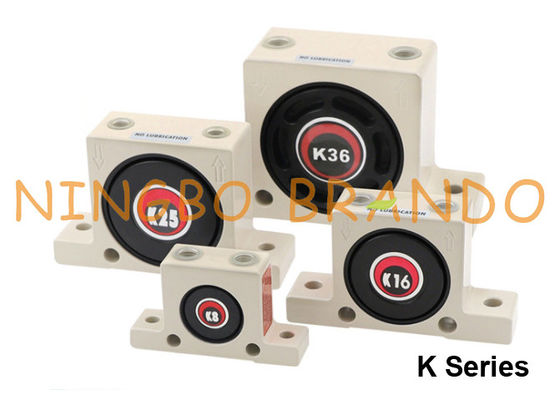

Findeva Type K Series Pneumatic Ball Vibrator For Hopper
K Series Pneumatic Ball Vibrators are simple and good. Wide range for many applications.
Properties:
1. Powerful
2. Rated frequency 7300 – 35000 rpm
3. Centrifugal force 130 – 4050 N
4. Continuously variable
5. Can be used up to 100°C
6. HT-Version up to 150°C on request
Field of application:
1. Emptying of bunkers
2. Screen filters
3. Vibrating tables
4. Preventing adhesions in piplines and silos
5. Moving of goods
Main Dimension of K Series Pneumatic Ball Vibrators:
|
Model
|
A
(mm)
|
Width
(mm)
|
C
(mm)
|
D
(mm)
|
E
(mm)
|
F
(mm)
|
G
(mm)
|
H
(Thread)
|
|
K-8
|
50
|
20
|
86
|
68
|
12
|
7
|
40
|
G1/4''
|
|
K-10
|
50
|
20
|
86
|
68
|
12
|
7
|
40
|
G1/4''
|
|
K-13
|
65
|
24
|
113
|
90
|
16
|
9
|
50
|
G1/4''
|
|
K-16
|
65
|
27
|
113
|
90
|
16
|
9
|
50
|
G1/4''
|
|
K-20
|
80
|
33
|
128
|
104
|
16
|
9
|
60
|
G1/4''
|
|
K-25
|
80
|
38
|
128
|
104
|
16
|
9
|
60
|
G1/4''
|
|
K-30
|
100
|
44
|
160
|
130
|
20
|
11
|
80
|
G3/8''
|
|
K-36
|
100
|
50
|
160
|
130
|
20
|
11
|
80
|
G3/8''
|
Technical Data of K Series Pneumatic Ball Vibrators:
|
Model
|
Vibrations
(x1000 RPM)
|
Centrifugal Force
(N)
|
Air Consumption
(l/min)
|
||||||
|
2 bar
|
4 bar
|
6 bar
|
2 bar
|
4 bar
|
6 bar
|
2 bar
|
4 bar
|
6 bar
|
|
|
K-8
|
25.5
|
31.0
|
35.0
|
130
|
260
|
360
|
83
|
145
|
195
|
|
K-10
|
22.5
|
28.0
|
34.5
|
250
|
470
|
710
|
92
|
150
|
200
|
|
K-13
|
15.0
|
18.5
|
22.5
|
320
|
550
|
870
|
94
|
158
|
225
|
|
K-16
|
13.0
|
17.0
|
19.5
|
450
|
800
|
1100
|
122
|
200
|
280
|
|
K-20
|
10.5
|
14.5
|
16.5
|
720
|
1220
|
1720
|
130
|
230
|
340
|
|
K-25
|
9.2
|
12.2
|
14.0
|
930
|
1570
|
2050
|
160
|
290
|
425
|
|
K-30
|
7.8
|
9.7
|
12.5
|
1510
|
2470
|
3210
|
215
|
375
|
570
|
|
K-36
|
7.3
|
9.0
|
10.0
|
2060
|
3150
|
4050
|
260
|
475
|
675
|
Construction of K Series Pneumatic Ball Vibrators:
